Cnc Vtl Make O-m

Cnc Vtl Make O-m Specification

Product Type
CNC Vertical Turning Lathe (VTL)

General Use
Industrial Metal Machining & Turning

Material
Cast Iron body, Steel Components

Type
Automatic CNC VTL

Capacity
Turning Diameter up to 1500 mm

Weight (kg)
Approx. 6000 - 8000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Available

Bar Feeder
Not equipped

Power Source
Electric

Power Consumption
Approx. 10-30 kW (varies by operation)

Rigidity
High Structural Rigidity

Voltage
415 V

Motor
AC Servo Motor - Make O-M

Table Size
Approx. 1000 mm - 2000 mm (based on model)

Spindle Speed
Variable, up to 600 rpm

Axial Choice
2 Axis (X, Z)

Dimension (L*W*H)
Approx. 3500 mm x 2800 mm x 3800 mm

Feature
Heavy-Duty Precision Turning, Automatic Chip Conveyor, Digital Control Panel

Color
Yellow

Installation
Floor-Mounted

Tool Holders
Multiple Tool Stations

Chip Conveyor
Automatic, as shown

Make
O-M Ltd

Coolant System
Integrated

Safety System
Safety Interlocks and Emergency Stops

Max Workpiece Weight
Up to 4000 kg

Chuck Type
Hydraulic

Noise Level
Low, Industrial Standard

Programming
G-Code compatible, CNC programmable

Operator Control
Digital Touch Panel

Maintenance
Easy access panels

Model
OM VTL Series

Condition
Used/Reconditioned (As per image)

Max Turning Height
Up to 1200 mm

Control System
Fanuc/Siemens

Lubrication
Automatic Centralized

About Cnc Vtl Make O-m

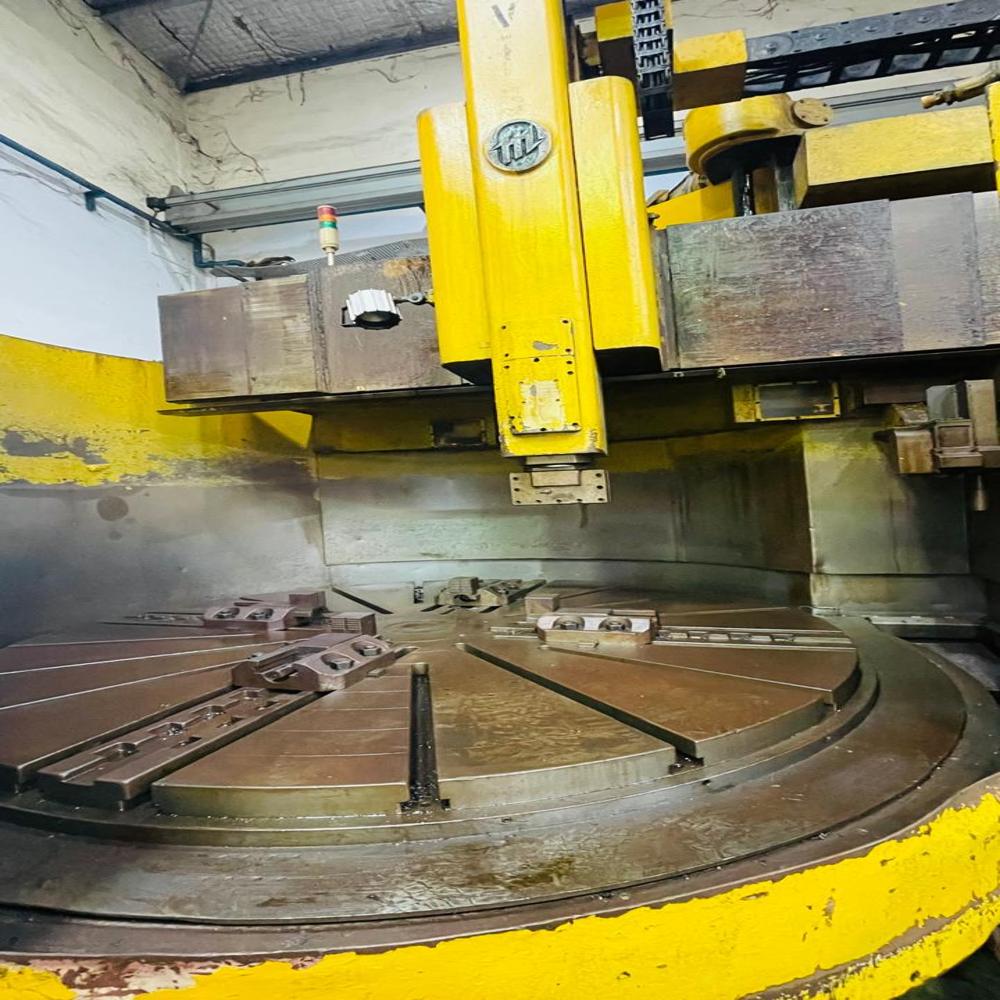

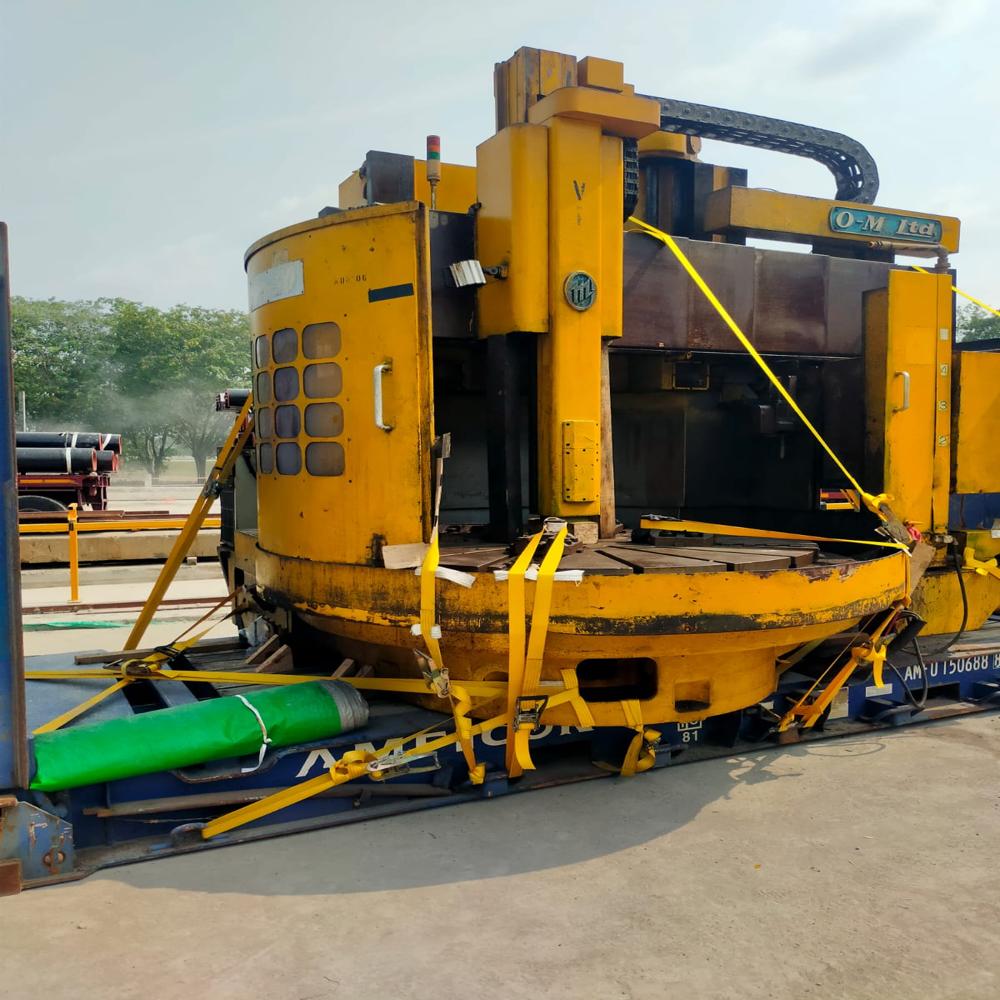

MAKE O-M

CNC Vertical Lathe

Model: NEO 20

Origins Japan

Year: 2008

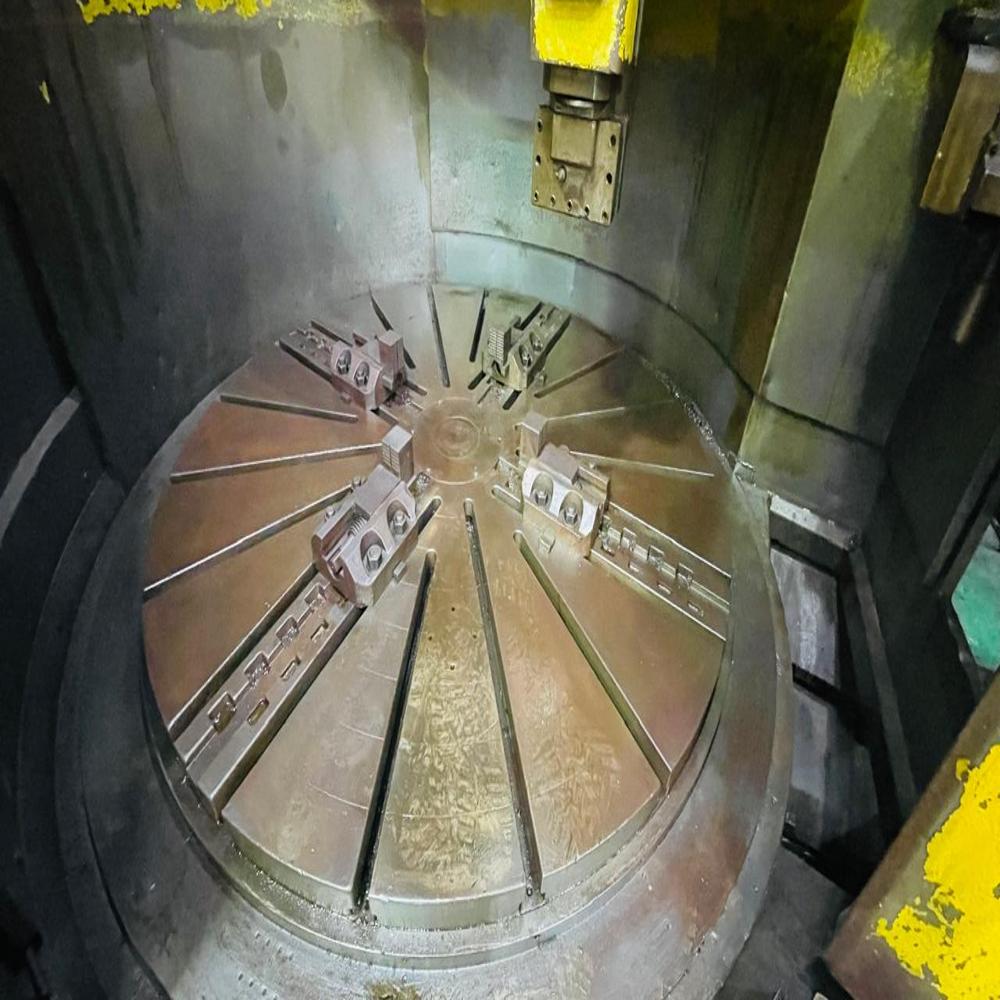

Chuck: 2000mm

Turning Dia 2350mm

Control: Fanuc Oi-TB

Working height Height 1800mm

Atc 12 tools

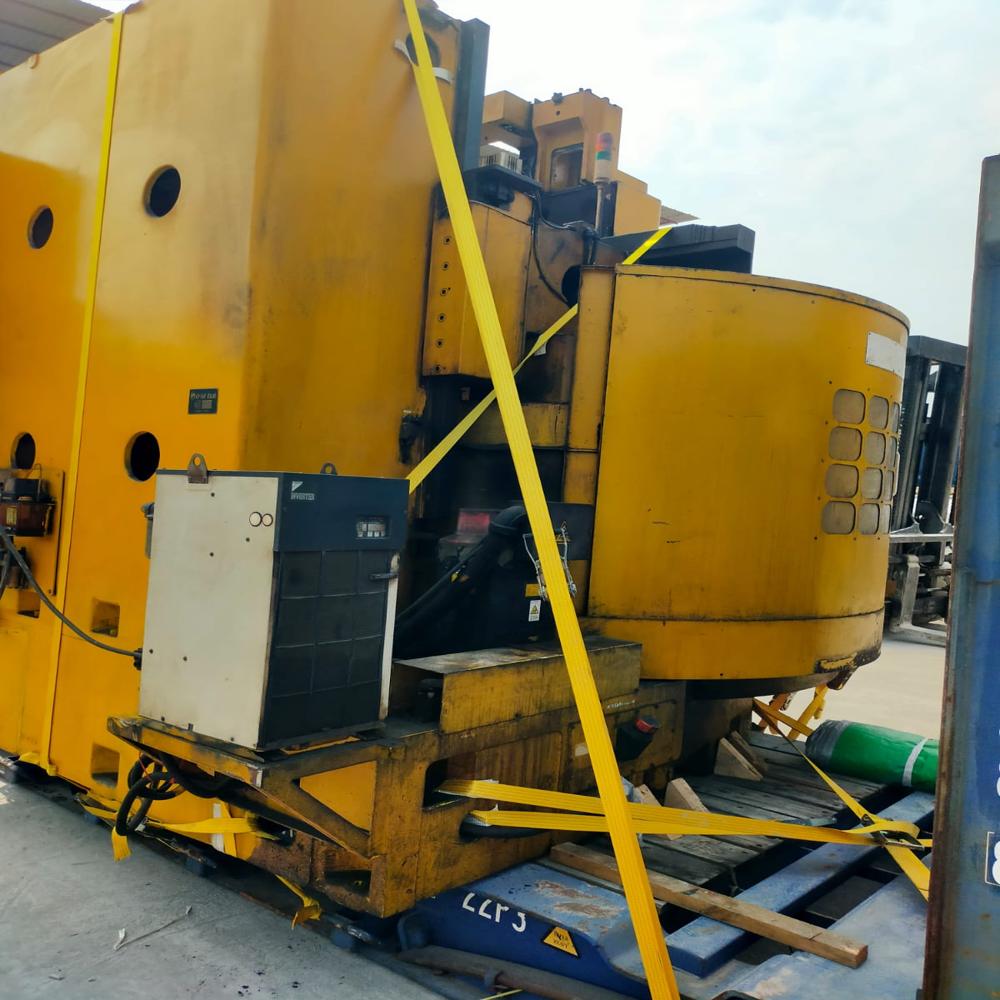

Complete with step down transformer / oil chiller / chip conveyor / coolent tank & books

EXELLENT WORKING CONNDITION.

High Precision and Versatility

The OM VTL Series ensures precise machining with its multiple tool stations, automatic chip conveyor, and CNC programmable digital control panel. Operators benefit from flexible G-code compatibility, enabling complex turning operations across diverse metalwork requirements. Its robust cast iron and steel construction suit heavy-duty industrial environments.

Optimized Operator Experience

Designed for seamless operator engagement, the machine features a digital touch panel, low noise levels, and easy-access maintenance panels. Integrated PLC control and automatic systems minimize manual intervention, supporting productivity while maintaining safety through interlocks and emergency stops.

Reliable and Efficient Performance

With its high structural rigidity, automatic centralized lubrication, and AC servo motors, the CNC VTL Make O-m delivers reliable performance. The machine handles large workpieces with variable spindle speeds up to 600 rpm, and its power consumption ranges between 10 and 30 kW depending on the operation, making it suitable for continuous industrial use.

FAQ's of Cnc Vtl Make O-m:

Q: How does the CNC VTL Make O-m ensure precise heavy-duty turning operations?

A: Precision is achieved through high structural rigidity, CNC programming with G-code compatibility, multiple tool stations, and digital control, making it ideal for intricate and accurate industrial metal turning tasks.

Q: What is the typical installation process for this machine?

A: The CNC VTL Make O-m is installed floor-mounted and requires an appropriate foundation. Professional setup is recommended to ensure correct alignment, power connection (415 V), and system calibration for optimal performance.

Q: When should maintenance be conducted on this vertical turning lathe?

A: Regular maintenance is advised, focusing on the automatic lubrication system, coolant checks, and inspection of safety interlocks. The easy-access panels facilitate routine servicing, which helps sustain machine longevity and performance.

Q: Where can this model be most effectively utilized?

A: This CNC VTL is best suited for industrial workshops, manufacturing plants, and machining centers performing high-capacity metal turning, especially where precision and reliability for large, heavy workpieces are required.

Q: What is the maximum workpiece capacity and table size of the OM VTL Series?

A: The machine can handle workpieces up to 4000 kg in weight and a turning diameter of up to 1500 mm, with a table size ranging from approximately 1000 mm to 2000 mm depending on the selected model.

Q: How are safety and operator control managed in this model?

A: Operator safety is ensured through integrated safety interlocks, emergency stops, and a digital touch panel for precise control. The system includes robust safety standards for industrial machinery.

Q: What are the main benefits of using a reconditioned CNC VTL Make O-m?

A: Reconditioned models provide performance comparable to new machines, but at a reduced investment. They offer full CNC automation, heavy-duty capability, reliable safety features, and easy integration into existing production lines.
